Brand Name : | XINDA |
Certification : | CE CCC CQC ISO |
Price : | Negotiable |

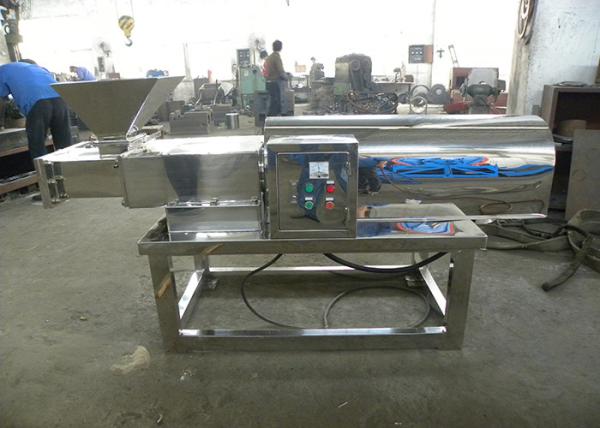

Food Chemical Medicine Wet Extrustion Granulator
Main Application
The machine is suitable for granules of different specifications in
wet process in fields such as pharmacy, chemical, foodstuff,
fodder, ect.
Working Method
The particles are extruded from augers and steel plates of the
machine, thus the particle size is regular with less fine powder.
The product can keep long, so that the machine is especially
suitable for the production of herb granules in pharmacy and
foodstuff industries. The machine is made of stainless steel with
surface polished, and easy to dismantle, assemble and clean.
Technical Data
Model | JZL-60 | JZL-130 | JZL-200 |
Central distance of two augers(mm) | 60 | 130 | 200 |
Wet material production capacity(kg/h) | 10-150 | 20-350 | 50-600 |
Particle size of finished products(mm) | 0.5-6 | 0.5-3 | 0.5-6 |
Extrusion bearing speed(r/min) | 65 | 55 | 40 |
Motor power(Kw) | 2.2 | 5.5 | 18.5 |
weight(kg) | 300 | 500 | 1300 |
Overall size(mm) | 1350x600x1150 | 1100*650*1600 | 2500x1000x1400 |
![]() |
