Brand Name : | Xinda |
Model Number : | CQF-75 |
Certification : | CE CCC ISO CQC |
Supply Ability : | 10 Piece/Pieces per Month |
Price : | Negotiable |
Introduction

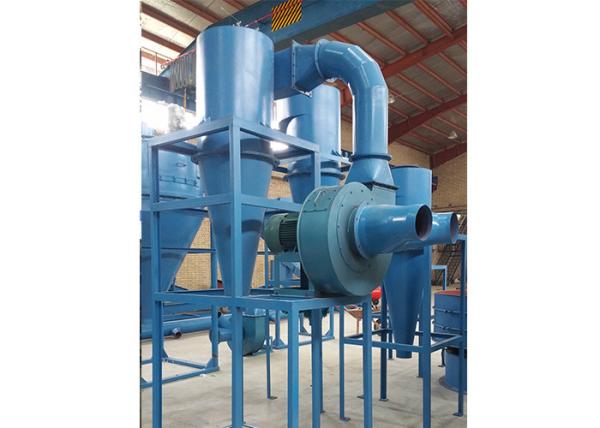

CQF Coarse Fiber Separator is an ideal separating equipment for the
coarse fiber mixed in the rubber granules from the rubber chip
grinder to improve the purity of the rubber for the next rubber
powder milling process. It mainly consists of Sucking Mouth, Air
Volume Adjusting Door, Flexible Pipes, Draught Fan, Body Frame,
Cyclone, etc.
Structure and Principle
◆High Separating Effects, can separate over 96% fiber;
◆Adjustable Height
◆Equipped with two different sizes of Suck Mouths, with air volume
adjusting device
◆Adopts improved model of Draught fan, strong sucking force, no
jamming. The cyclone can separate fiber effectively to avoid
pollution and increase production capacity.
Technical Data
Model | 75 |
Capacity(Kg/H) | 400~800 |
Handle materials | Fiber, Rubber granule |
Motor power(kw) | 7.5 |
Separation efficiency(%) | ≥ 96 |
Air mouth quantity(Pcs) | 2 |
Weight(T) | 0.8 |
![]() |
