Brand Name : | Xinda |
Model Number : | FL-250 |
Certification : | ISO CE |
Supply Ability : | 10 Piece/Pieces per Month |
Price : | Negotiable |

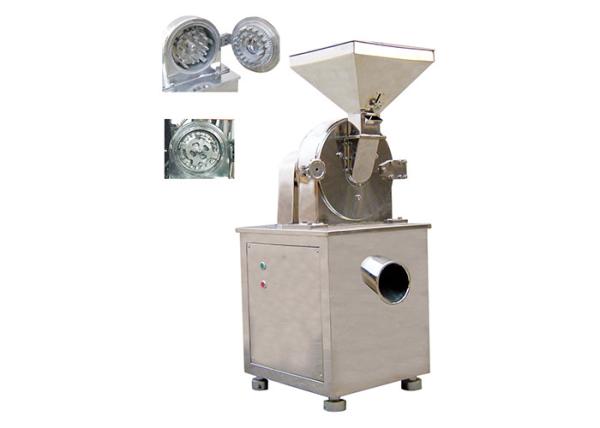

FL Series Air Cooled Crushing Machine Applied For The Material Crushing
Main Application
The machine is widely applied for the material crushing by the
industries of pharmaceutics, chemical and foodstuff, etc.
Characteristics
(1) The crushing chamber is equipped with the wind wheel type
high-speed rotating cutter, so that the airflow in the chamber is
strong enough to eliminate any heat in the chamber.
(2) It possesses the merits of smooth operating, dismantling and
assembling, low noise and good crushing efficiency.
Working Method:
(1) The machine uses the wind wheel type high-speed rotating
cutters and the fixed cutters to crush, mill and shear raw
material, which is accompanied by strong airflow inside of the
chamber to bring out the heat with the finished products through
the screen.
(2) The size of granules can be achieved by changing of the screen.
Model | 150 | 250 | 350 | 500 |
Capacity(kg/h) | 20-80 | 30-200 | 50-300 | 80-500 |
Size of input granules(mm) | < 10 | < 10 | < 12 | < 15 |
Size of output granules(mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
Motor power(kw) | 2.2 | 5.5 | 11 | 22 |
Speed of principal axis(r/min) | 3000 | 2900 | 2900 | 2800 |
Weight(kg) | 100 | 250 | 350 | 500 |
Overall size(L*W*H)(mm) | 550*420*1400 | 750*550*1400 | 850*700*1600 | 850*850*1850 |
![]() |
